PUSH AND PULL RJ45 SYSTEM
Push and Pull RJ45 system is a ruggedized and lockable designed RJ45 connector system, ideal for pro audio, video and lighting network and digital signal transmission applications. The chassis connectors shaped to fit into standardized panels out of the entertainment industry.
- Ruggedized and lockable designed RJ45 system for harsh and demanding environments.
- Ideal for pro audio, video and lighting network and digital signal.
- Contacts are phosphor bronze plated with 50 micro inches hard gold.
- Field terminable, simple termination design enable the installers easy to achieve Cat.6/ Cat.6A performance at file.
- Termination capability: 22-26 AWG solid wire.
- Durability: 750 mechanical cycles.
- Plug end standard gasket OD 7.5mm option al gasket OD 5.5mm available upon request.
Order Information

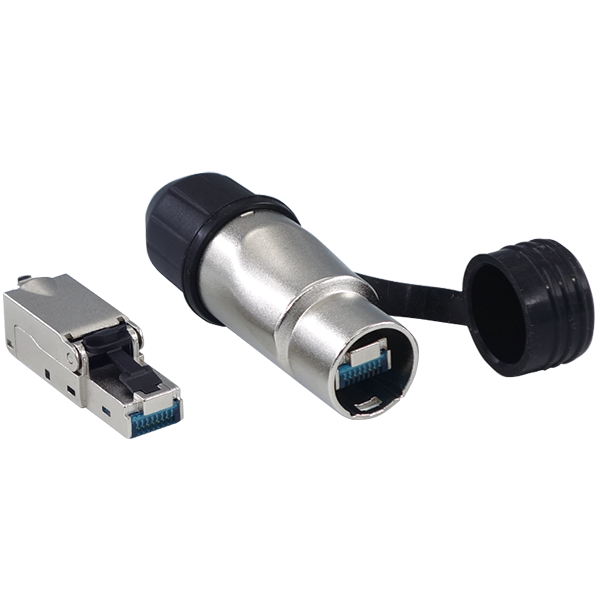

IK-QCPT01000
Push pull cable end, Cat.6A STP field Plug, IP66
Push pull cable end, Cat.6A STP field Plug, IP66

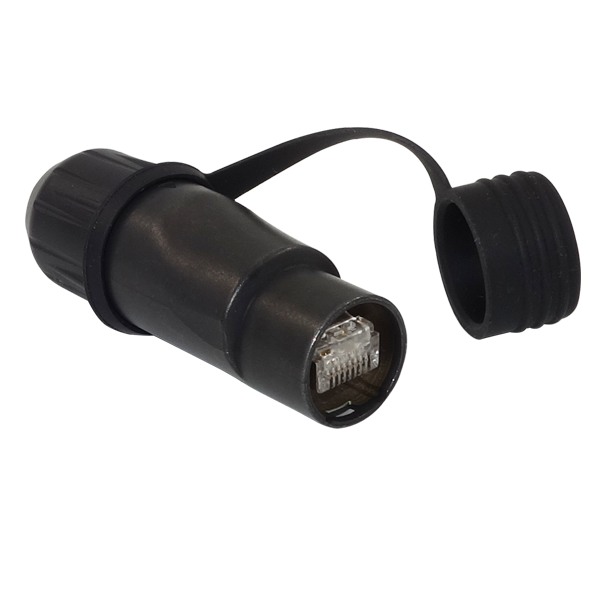

IK-QCPM01000
Push pull cable end, Cat.6A STP modular plug
Push pull cable end, Cat.6A STP modular plug

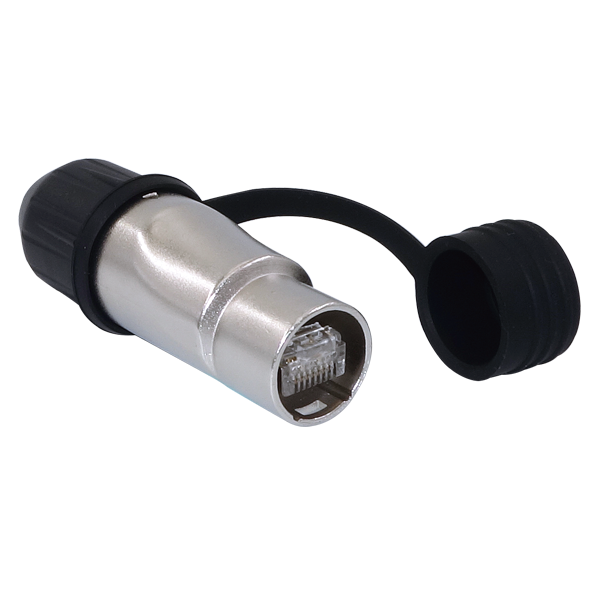

IK-QCPM02000
Push pull cable end, Cat.6A STP modular plug, IP66
Push pull cable end, Cat.6A STP modular plug, IP66

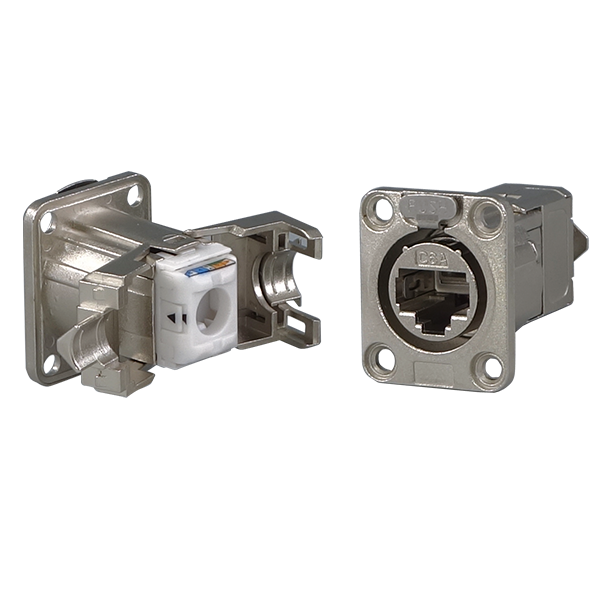

IK-QCSK01000
Push pull panel mount, Cat.6A STP Jack
Push pull panel mount, Cat.6A STP Jack
IK-QCSK02000
Push pull panel mount, Cat.6A STP Jack, IP66
Push pull panel mount, Cat.6A STP Jack, IP66
IK-QCSK01100
Push pull panel mount, Cat.6A STP Jack, 2 screw holes
Push pull panel mount, Cat.6A STP Jack, 2 screw holes
IK-QCSC01000
Push pull panel end Cat.6A STP In-line coupler, 4 mounting screw holes
Push pull panel end Cat.6A STP In-line coupler, 4 mounting screw holes
IK-QCSC01100
Push pull panel end Cat.6A STP In-line coupler, 2 mounting screw holes
Push pull panel end Cat.6A STP In-line coupler, 2 mounting screw holes
IK-QCSC02000
Push pull panel end Cat.6A STP In-line coupler, IP66
Push pull panel end Cat.6A STP In-line coupler, IP66
.png)

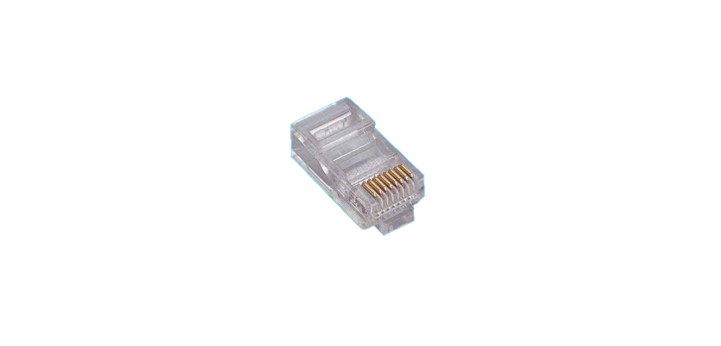

IK-MP-U-050
RJ 45, Unshielded Modular Plug 8P8C, 50u", for stranded wire
RJ 45, Unshielded Modular Plug 8P8C, 50u", for stranded wire
IK-MP-U-050-C6-1
RJ 45, Unshielded Modular Plug 8P8C -Cat 6 50u" for stranded wire without insert
RJ 45, Unshielded Modular Plug 8P8C -Cat 6 50u" for stranded wire without insert
IK-MP-U-050-C6-2
RJ 45, Unshielded Modular Plug 8P8C -Cat 6 50u" for stranded wire-2 Pieces
RJ 45, Unshielded Modular Plug 8P8C -Cat 6 50u" for stranded wire-2 Pieces
IK-MP-U-050-C6A
RJ 45, Unshielded Modular plug 8P8C - Cat.6A round cable, 3 prongs contact blades, fit solid and stranded wire, gold plated 50U”, with insert, wire hole 3 up/ 5 down,94-V2
RJ 45, Unshielded Modular plug 8P8C - Cat.6A round cable, 3 prongs contact blades, fit solid and stranded wire, gold plated 50U”, with insert, wire hole 3 up/ 5 down,94-V2
